Shenzhen Fortune Sky Technology Co.,Ltd
“The same equipment we compare quality, the same quality we compare price, the same price we compare service”!
Add to Cart
Features
Full touch screen CNC control: The wire length, single-end stripping, double-end stripping, single-end splitting, double-end splitting, single-end offset, and double-end offset can all be digitally set and operated on the touch screen, making it simple and easy to understand.
Art knife splitting: The artistic knife blade design makes splitting smoother with no burrs.
Cylinder and roller traction: The design uses a cylinder and rollers to pull and split the wire, allowing the splitting length to be adjusted freely and conveniently without limitation.
Independent splitting structure: The splitting structure is designed to be easily disassembled and installed, allowing the machine to be used for ordinary electronic wires, making it a multi-purpose machine.
L-model with offset: For two wires with a length offset, the machine includes a clamp to assist in straightening the wire when the tail splitting offset is long. The offset length can be adjusted freely, and the machine can be switched between offset and non-offset modes.
Technical Parameters:
| Technical Parameter | Specification | Technical Parameter | Specification |

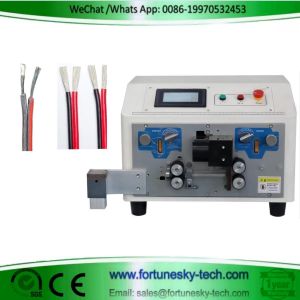

| Equipment Name | Automatic Double Parallel Wire Cutting Stripping Splitting Machine | Wire Core Gauge | 0.1-2.5 mm² (double wire) |
| Equipment Model | FY-902 | Cutting Length | 0.1-99999.9mm |
| Input Power | AC220V 50/60HZ | Head Stripping Length | 0.1-30mm |
| Machine Dimensions | L520mmW465mmH350mm | Tail Stripping Length | 0.1-30mm |
| Machine Weight | 35kg | Splitting Length | Freely adjustable |
| Machine Power | 680W | Blade Material | High-speed steel |
| Rated Power | 400W | Stripping Accuracy | Silent hybrid stepper motor 0.01mm |
| Display Method | 4.3-inch color screen display | Output/Hour | 50-1000mm (1500-3500 wires/hour) |
| Auxiliary Functions | Automatic in/out wire, timed start, jogging adjustment | Program Storage | 00-99 (one-key copy, one-key read, custom nameable) |
